M2 Series

PC Box

The M2 Series PC Box (M2-PC Box) combines a robust and fanless design for harsh environment with highest PC performance for high reliable automation applications. The
M2-PC Box meets the various requirements by providing a wide range of configuration possibilities, such as different power supplies, interfaces, operating systems and more. All systems are "Made in Germany" and provide high long-term availability.

  • Box Sizes:
    Size L
    Size M
  • IP20
  • Intel® 11th, 7th, 6th Generation CPUs
  • Additional I/O and COM Ports for Remote Control
  • Optional up to 4 x COM (RS232, RS422/485)
  • Certifications:
    Type Approval DNV, Tested according to EN 60945
    EU RO MR(1)

(1) In progress 2023

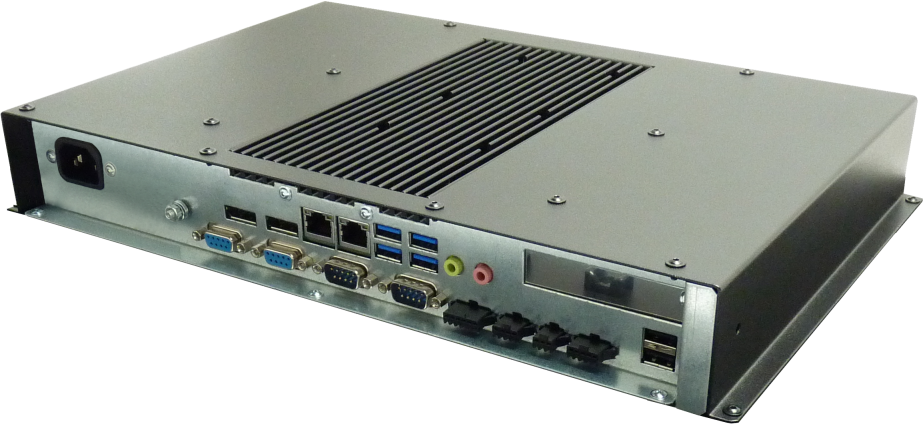

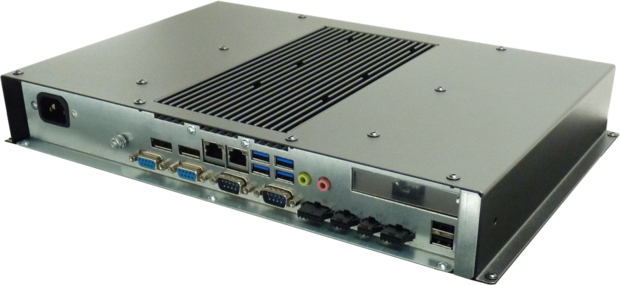

M2 PC Box

The PC Boxes (M2-PC Box) offer a wide range of configuration possibilities. Please see the following options below.

Available Boxes

Currently following box sizes and types are used for the PC Boxes.

Key Box Size
L Length x Width x Height: 390 x 253 x 58 mm
M Length x Width x Height: 317 x 253 x 58 mm
  Table: Box Types

CPU Types

The PC Boxes are available in different performance classes respectively with different CPU types.

Key Description
i7(TG) Intel® Core™ i7-1185GRE, 4 Cores, 12M Cache, 1.80 GHz (TBM: 4.40 GHz)
i5(TG) Intel® Core™ i5-1145GRE, 4 Cores, 8M Cache, 1.50 GHz (TBM: 4.10 GHz)
i7(K) Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.80 GHz (TBM: 3.90 GHz)
i5(K) Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.60 GHz (TBM: 3.50 GHz)
i3(K) Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.40 GHz
i7(S) Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.60 GHz (TBM: 3.40 GHz)
i5(S) Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.40 GHz (TBM: 3.00 GHz)
Cel(K) Intel® Celeron® Processor 3965U, Dual Core, 2M Cache, 2.20 GHz
  Table: CPU Types 6th/7th/11th Generation (TBM: Turbo Boost Max Frequency)

Power Supply

As standard, the PC Boxes will be delivered with wide range power supply DC. To fulfill the requirements of our clients, the systems are also available either with 24 VDC and 115 / 230 VAC DCAC or 115 / 230 VAC, 50/60 Hz only.

Key Description
DCAC Redundant 24 VDC (18 - 32 VDC) and 115/230 VAC, 50/60 Hz
DC Wide range 24 VDC (18 - 32 VDC)
AC Wide range 115/230 VAC, 50/60 Hz
  Table: Power Supply
