M2 Classic Series

Monitor

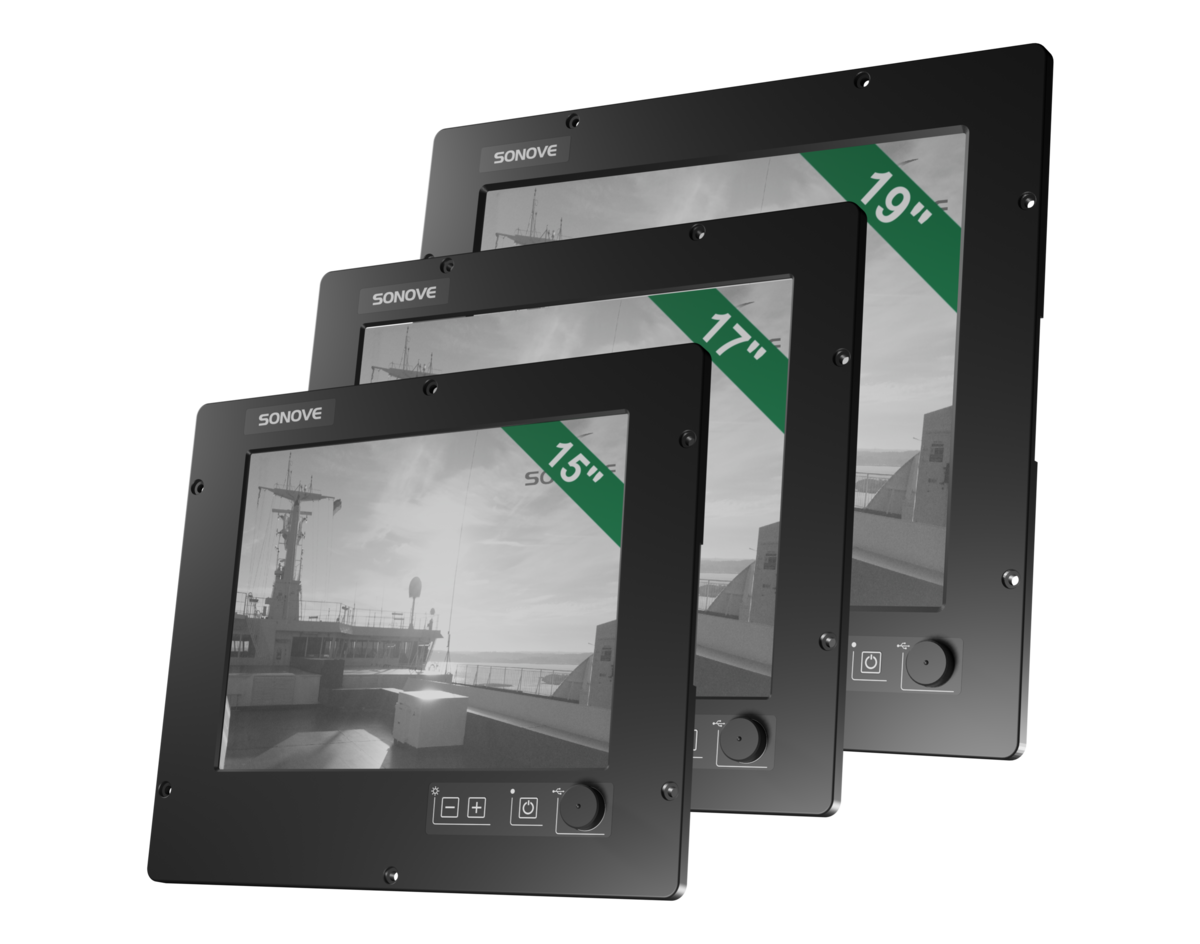

M2 Classic Series Monitor

The M2 Classic Series Monitors (M2C-M) combine classic front bezels with the latest technology. They satisfy the needs of both the latest and future generation for maritime applications. All systems are "Made in Germany" and provide high long-term availability.

  • Display Sizes:
    19 inch
    17 inch
    15 inch
  • Resistive Touch or Antireflex Glass
  • Full Range Dimming (0 .. 100%)
  • IP66 (front) - IP20 (rear)
  • Additional I/O and COM Ports for Remote Control
  • Certifications:
    Type Approval DNV, Tested according to EN 60945
    EU RO MR(1)

(1) in progress, expected Q4/2024

M2C-M Classic Monitor

The Classic Monitors (M2C-M) offer a wide range of configuration possibilities. Please see the following options below.

Available Displays

Currently following display sizes and types are used for the M2C Monitors.

Key Display Size Resolution, Brightness
15 15 inch 1024 x 768, 350 cd/m²
17 17 inch 1280 x 1024, 300 cd/m²
19 19 inch 1280 x 1024, 300 cd/m²
    Table: Display Types

Touch Option

The M2C Monitors are available with or without touch.

Key Description
GL
or -no key- 		Antireflex Glass
RT Resistive Touch
  Table: Touch

Power Supply

As standard, the M2C Monitors will be delivered with redundant power supply DCAC. But to fulfill the requirements of our clients, the systems are also available either with 24 VDC or 115 / 230 VAC, 50/60 Hz only.

Key Description
DCAC Redundant 24 VDC (18 - 32 VDC) and 115/230 VAC, 50/60 Hz
DC Wide range 24 VDC (18 - 32 VDC)
AC Wide range 115/230 VAC, 50/60 Hz
  Table: Power Supply
