M2 Series


The M2 Monitors (M2-M) are fully new designed Monitors with small frames for nearly all maritime applications. They are based on the latest technologies as well as on the experience of our clients. All systems are "Made in Germany" and provide high long-term availability.

  • LED Display Sizes:
    27 inch
    24 inch / 24 inch High Bright
    18.5 inch / 18.5 inch High Bright
  • With or without PCAP Multi-Touch
  • Full Range Dimming (0 .. 100%)
  • IP66 (front) - IP20 (rear)
  • ECDIS Compliant / Calibrated for your ECDIS Applications
  • With or without Front LEDs and Capacitive Keys
  • Additional I/O and COM Ports for Remote Control
  • Optional with Buzzer
  • Certifications:
    Type Approval DNV, Tested according to EN 60945
    EU RO MR(1)

(1) In progress 2023

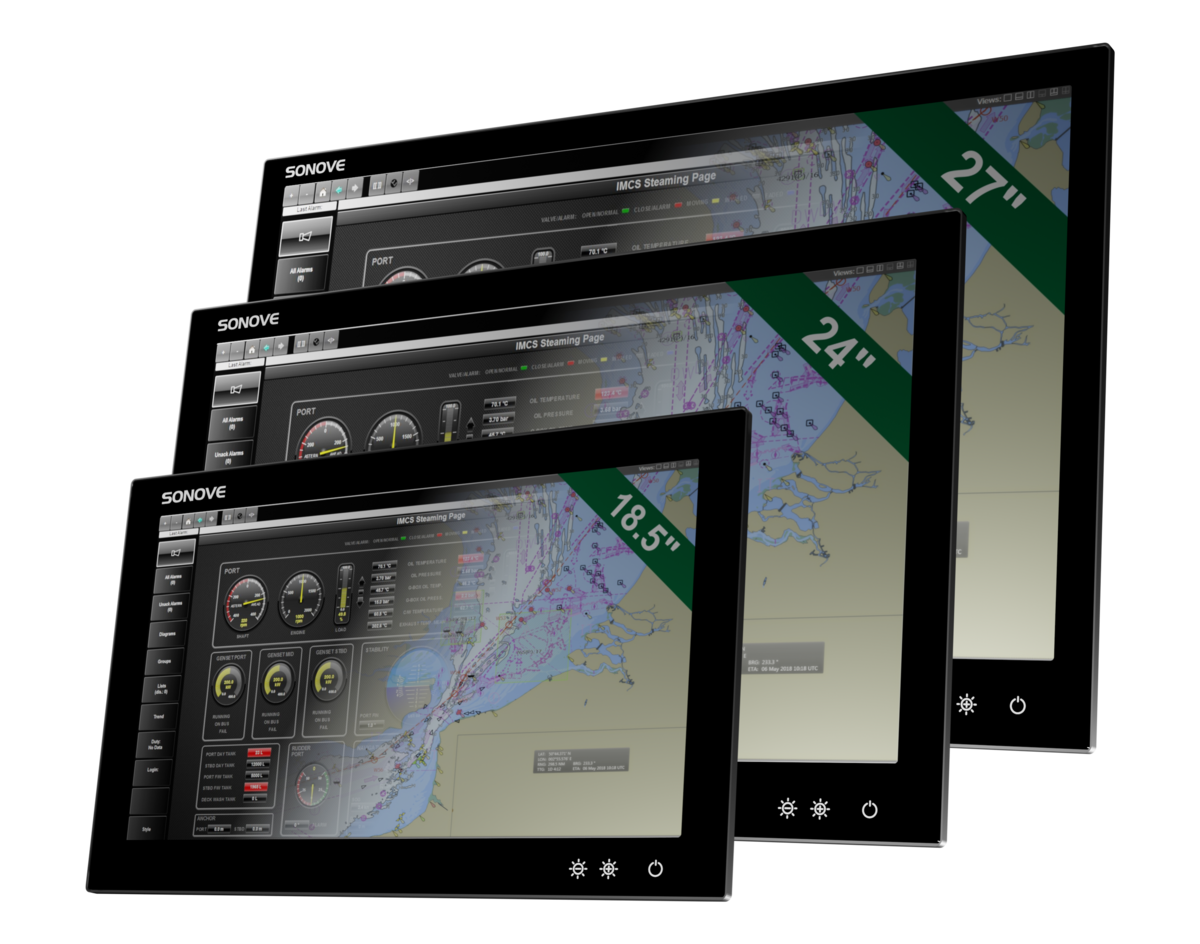

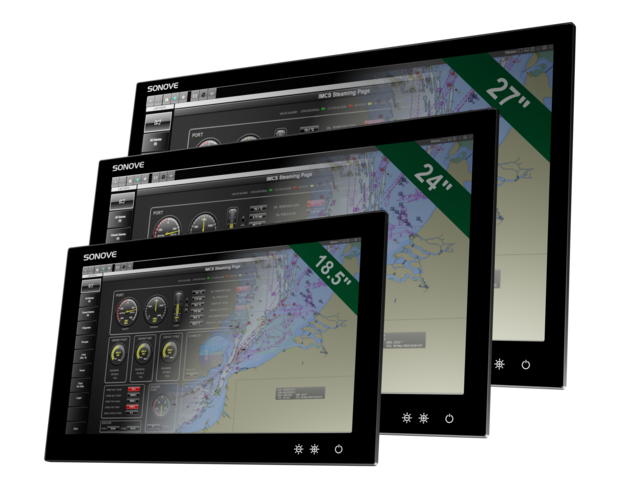

M2-M Maritime Monitor

The Maritime Monitors (M2-M) offer a wide range of configuration possibilities. Please see the following options below.

Available Displays

Currently following display sizes and types are used for the M2 Monitors.

Key Display Size Resolution, Brightness
18.5 18.5 inch 1920 x 1080, 300 cd/m²
18.5HB 18.5 inch High Bright 1920 x 1080, 1000 cd/m²
24 24 inch 1920 x 1080, 300 cd/m²
24HB 24 inch High Bright 1920 x 1080, 1000 cd/m²
27 27 inch 1920 x 1080, 300 cd/m²
    Table: Display Types

Mounting Options

The M2 Monitors are available for the different mounting requirements. Therefore two different front bezels for each display size are available in which the display and glass are laid in.

Key Description
or -no key-
Desktop, Wall, Ceiling (Accessory Mounting Brackets)
FM Flush Mount (Accessory Console Mounting Kit),
also Desktop, Wall, Ceiling (Accessory Console Mounting Kit)
  Table: Mounting Options

Touch Option

The M2 Monitors are available with or without touch.

Key Description
or -no key-
w/o touch
CT Capacitive multi-touch
  Table: Touch

Power Supply

As standard, the M2 Monitors will be delivered with redundant power supply DCAC. But to fulfill the requirements of our clients, the systems are also available either with 24 VDC or 115 / 230 VAC, 50/60 Hz only.

Key Description
DCAC Redundant 24 VDC (18 - 32 VDC) and 115/230 VAC, 50/60 Hz
DC Wide range 24 VDC (18 - 32 VDC)
AC Wide range 115/230 VAC, 50/60 Hz
  Table: Power Supply
